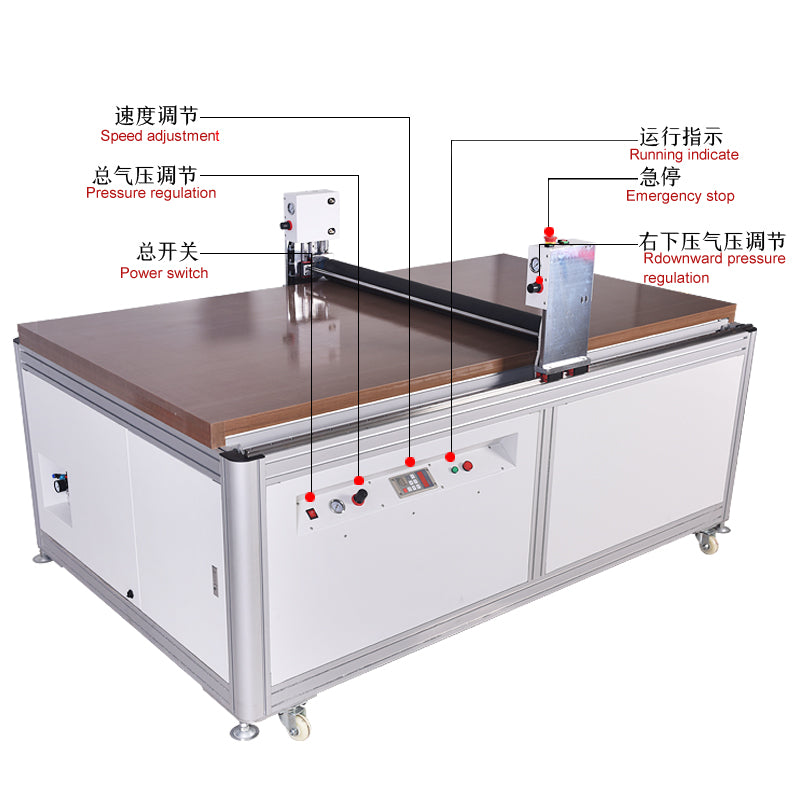

Polarizer Film Laminating Machine (≤ 65″ LCD)

This HYPLM65 Polarizer Film Laminating Machine is a semi-automatic, precision tool designed for the accurate application of polarizer films on LCD glass panels up to 65 inches. A mainstay for repair professionals, this machine offers powerful three-phase AC drive, exceptional torque, rapid operation, and high stability—with feedback confirming its reliability among users.

Panel Size	Supports LCD panels up to 65 inches (expandable upon request)
Glass Thickness	0.3–1.1 mm (single layer, TFT glass)
Input Power	AC 220 V, 50–60 Hz;
Operating Air Pressure	0.4–0.8 MPa; Adjustable via pointer (0.01–0.8 MPa)
Pated Power	1.1KW
Operation Mode	Inverter auto-control
Main Body Material	High-strength aluminum alloy with electrophoretic coating
Roller	Up-and-down round-trip rail; long rubber roller with anti-static, high elasticity, deformation-resistant design
Dimensions	2000 × 1250 × 1300 mm(L×W×H)
Weight	350 kg (N.W)
Fetures	Precision & Finish High-precision parts ensure smooth, bubble-free, wrinkle-free lamination; 99.5% of units require no de-foaming post-lamination
Warranty	1 year includes training, maintenance and global support
