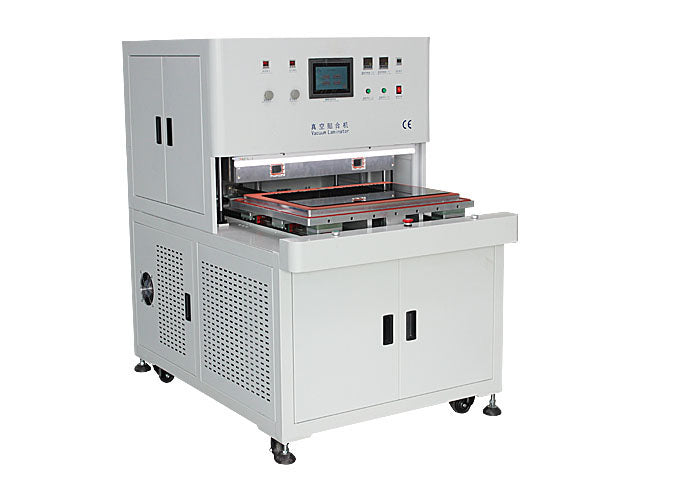

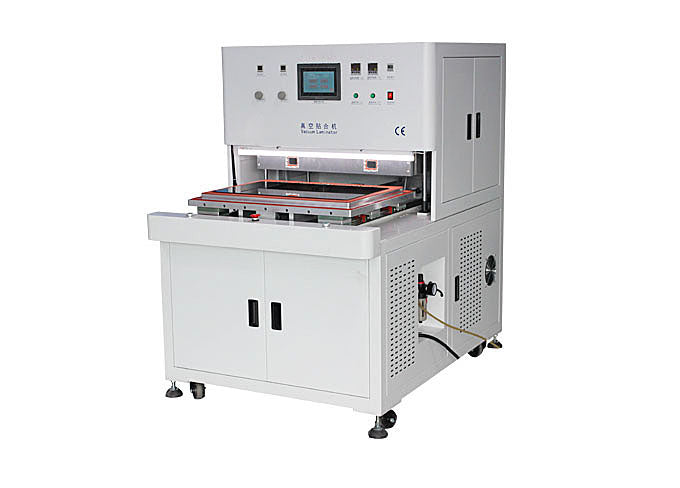

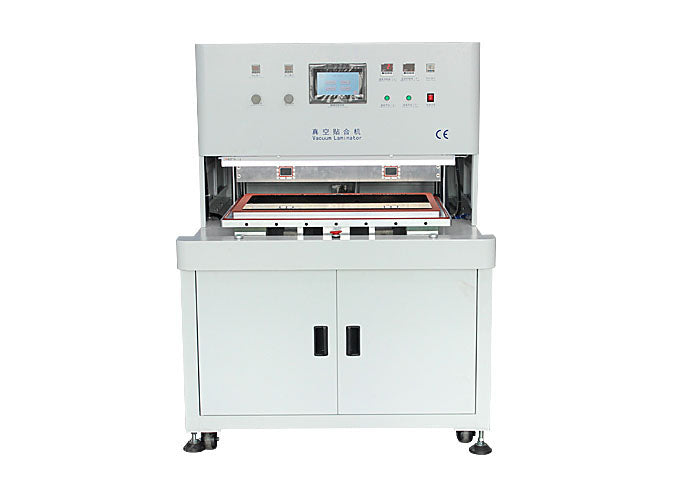

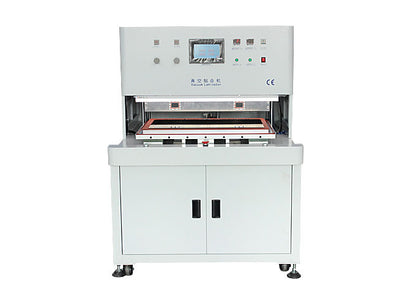

30" Vacuum Laminator for LCD and Glass Bonding – LCD/OLED OCA/TP/LCM Glass Bonding Equipment
30" Vacuum Laminator for LCD and Glass Bonding – LCD/OLED OCA/TP/LCM Glass Bonding Equipment
The HYZC30 Vacuum Laminating Machine is designed for bonding touch screens, LCD panels, and cover glass under vacuum conditions. By applying cylinder pressure in a sealed vacuum chamber, it ensures bubble-free and precise lamination. The machine features an intuitive touch screen interface with both Chinese and English options, and it supports manual and automatic control modes. Stable performance, easy operation, and reliable quality make it ideal for professional LCD and touchscreen repair or assembly.
Applications
- Suitable for laminating screens up to 30 inches
- Applicable for LCD module bonding with cover glass
- Supports multiple adhesives: OCA, COF/OCF glue, SCA glue
- Widely used in full lamination of touch panels, cover glass bonding, and electronic chip applications
Key Features & Specifications
| Model/Brand | HYZC30 |
| Power Supply | 7 kW, 220 V, 50 Hz |
| Air Source | Dry compressed air, 0.5–0.6 MPa (4–6 kgf/cm²) |
| Production Speed | 60–150 seconds per cycle (adjustable) |
| Operating Environment | Temp: 10–60 ℃, Humidity: 40–95% RH |
| Max Work Size | 510 × 710 mm |
| Machine Size / Weight | 149 × 105 × 146 cm / approx. 550 kg |
| Control System | Integrated smart control, 7" touch screen, bilingual interface, upper & lower heating with temperature control |
| Core Components | 900 W vacuum pump, Omron temperature controller, SMC pressure/vacuum gauge, Adecker cylinder, Adecco filters, silver-plated guide rails |
| Safety Features | Emergency stop, dual-button start, leakage protection, anti-static grounding |
